VNA-RCAM-TRC160

Features

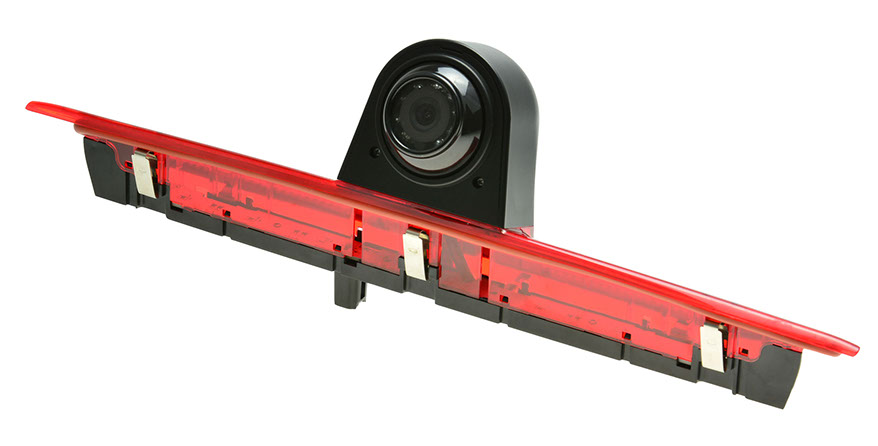

• Night Vision Rear View Camera with Near Vision in
  Third Brake Light for Ford Transit Box Van 2021+ Facelift
• Sensor type 1/3” CMOS
• TV-System PAL
• Resolution 968 (H) × 488 (V) px / 700 TV Lines
• Viewing angle 133° (D) x 106° (H) x 76° (V)
• Photosensitivity 0,1 Lux (F1.2 AGC on) – 0,0 Lux (IR-LED on)
• IR-LEDs (Night Vision) 9
• Mirror function fixed
• Protection class IP69K
• Connector: 1 x QSM 6-pin, male, screw type, IP68
• R7 approval for third brake light (S3-02),
  no TÜV approval or registration required
• Rapid Switch:
  - Quick activation of the camera view
  This means that the camera does not have to be permanently switched on, which has a positive effect on the service life and power consumption
