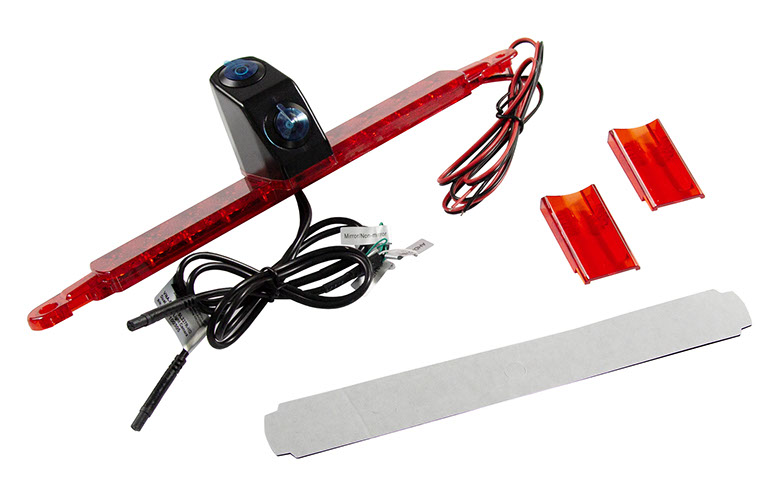

VNA-RCAM-SL227R-HD

Features

  • HD Dual Rear View Camera with Near and Distant Vision in
    Third Brake Light for     fully and semi-integrated
    Sunlight / Carado / Etrusco Campers
  • Sensor type Near Vision: 1/2.7“ CMOS
  • Sensor type Distant Vision: 1/4.5” CMOS
  • TV-System AHD (Analog High Definition) or CVBS/PAL
  • Resolution 1280 (H) × 720 Pixel (V) / 1000 TV Lines
  • Viewing angle Near Vision 210° (D) x 170° (H) x 130° (V)
  • Viewing angle Distant Vision 110° (D) x 90° (H) x 60° (V)
  • Mirror function optional
  • Protection class IP69K
  • Without internal 5V power supply
  • Dimensions: W 290 mm x H 55 mm x D 56 mm
  • Connector: 2 x SCM 4-pin, male
  • Rapid Switch:
    - Quick activation of the camera view
    - Quick switching between views
    This means that the camera does not have to be permanently switched on, which has a positive effect on the service life and power consumption

Downloads

Data Sheet

Note: This camera is a special model without an internal 5 volt power supply, which is intended exclusively for installation in vehicles with factory-installed extension cables (with integrated power supply) such as Sunlight, Carado or Etrusco. Before installation, you must check whether the correct voltage of 5 volts is present, otherwise the camera could be damaged.

€ 249,00

Manufacturer's suggested retail price, changes and mistakes reserved.
