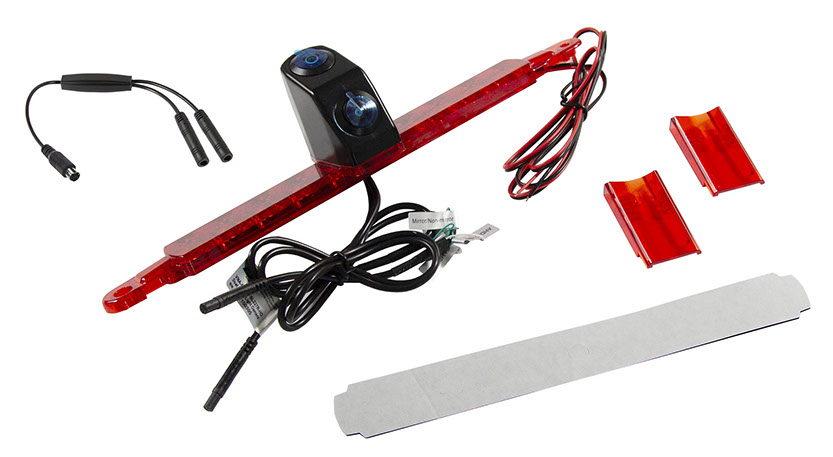

VNA-RCAM-SL225R-HD

Features

• HD Dual Rear View Camera with Near and Distant Vision in
  Third Brake Light for for fully and semi-integrated
  Sunlight / Carado / Etrusco Campers
• Sensor type Near Vision: 1/2.7“ CMOS
• Sensor type Distant Vision: 1/4.5” CMOS
• TV-System AHD (Analog High Definition) or CVBS/PAL
• Resolution 1280 (H) × 720 Pixel (V) / 1000 TV Lines
• Viewing angle Near Vision 210° (D) x 170° (H) x 130° (V)
• Viewing angle Distant Vision 110° (D) x 90° (H) x 60° (V)
• Mirror function optional
• Protection class IP69K
• Integrated 5V power supply
• Dimensions: W 290 mm x H 55 mm x D 56 mm
• Connector: 2 x SCM 4-pin, male, incl. y-adapter
  on Mini-DIN 6-pin, male (VNA-RCAM-YA775)
• Rapid Switch:
  - Quick activation of the camera view
  - Quick switching between views
  This means that the camera does not have to be permanently switched on, which has a positive effect on the service life and power consumption
