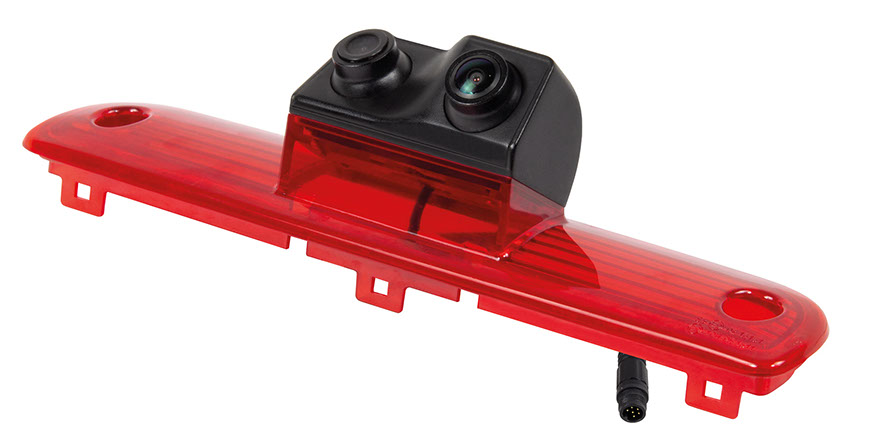

VNA-RCAM-DBJ200

Features

• Dual Rear View Camera with Near and Wide Vision in
  Third Brake Light for Fiat Ducato Platform (2006+)

• Sensor type 2 x 1/3” CMOS
• TV-System PAL
• Resolution 968 (H) × 488 (V) px / 700 TV Lines
• Viewing angle near vision 178° (D) x 137° (H) x 104° (V)
• Viewing angle wide vision 92° (D) x 85° (H) x 51° (V)
• Mirror function fixed
• Protection class IP69K
• Connector: 1 x QSM 6-pin, male, screw type, IP68
• R7 approval for third brake light (S3-02),
  no TÜV approval or registration required
• Rapid Switch:
  - Quick activation of the camera view
  - Quick switching between views
  This means that the camera does not have to be permanently switched on, which has a positive effect on the service life and power consumption
