VNA-RCAM-DBJ109SL

Features

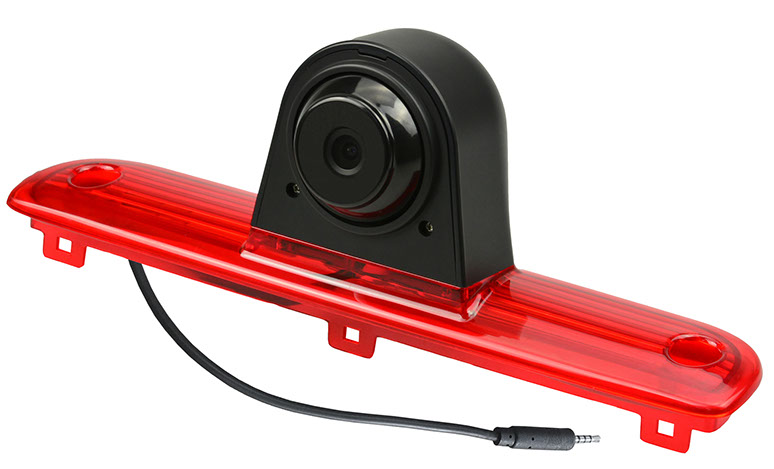

• Rear View Camera with Near Vision in Third Brake Light ,
  for e.g. Sunlight Cliff Box Van
• IMPORTANT: The vehicle must have an already installed cable
  with a Ø 2.5 mm jack plug and integrated power supply
• Sensor type 1/3” CMOS
• TV-System PAL
• Resolution 968 (H) × 488 (V) px / 700 TV Lines
• Viewing angle 120° (D), 95° (H), 70° (V)
• Mirror function fixed
• Protection class IP68
• Connector: 1 x KSM425 4-pin (Ø 2,5 mm), male
• R7 approval for third brake light (S3-02),
  no TÜV approval or registration required
• Rapid Switch:
  - Quick activation of the camera view
  This means that the camera does not have to be permanently switched on, which has a positive effect on the service life and power consumption

Downloads

Data Sheet
