VNA-RCAM-DBJ105

Features

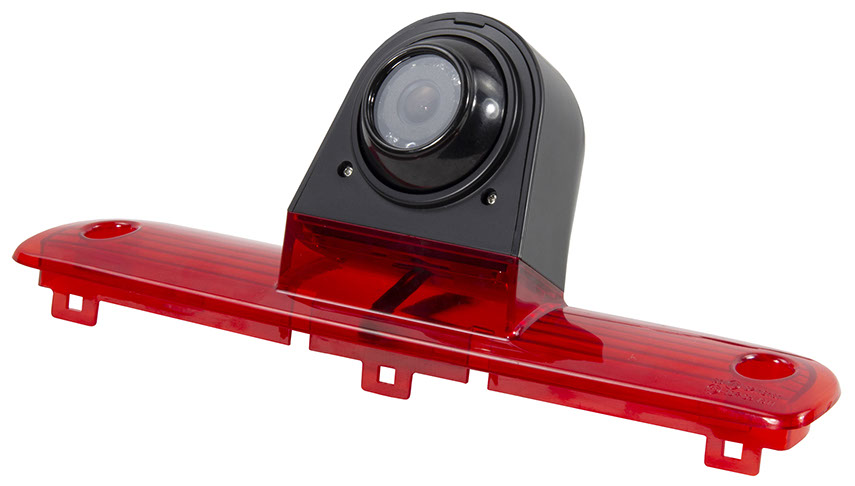

• Rear View Camera with Near Vision in
  Third Brake Light for Fiat Ducato Platform (2006+)

• Sensor type 1/3” CMOS
• TV-System PAL
• Resolution 968 (H) × 488 (V) px / 700 TV Lines
• Viewing angle 120° (D) x 95° (H) x 70° (V)
• Photosensitivity 0,1 Lux (F1.2 AGC on) – 0,0 Lux (IR-LED on)
• IR-LEDs (Night Vision) 9
• Mirror function fixed
• Protection class IP69K
• Connector: 1 x Mini-DIN 6-pin, male,
  for Pössl/Clever Campers
• R7 approval for third brake light (S3-02),
  no TÜV approval or registration required
• Rapid Switch:
  - Quick activation of the camera view
  This means that the camera does not have to be permanently switched on, which has a positive effect on the service life and power consumption

Downloads

Data sheet
