VNA-RCAM-DBJ100HD

Features

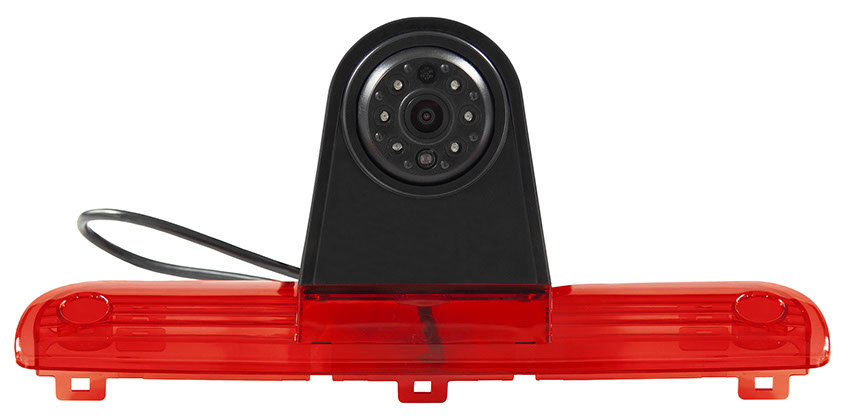

• HD Rear View Camera with Near Vision in
  Third Brake Light for Fiat Ducato Platform (2006+)

• Sensor type 1/3” CMOS
• TV-System AHD (Analog High Definition) or CVBS/PAL
• Resolution 1280 (H) × 720 Pixel (V) / 1000 TV Lines
• Viewing angle 175° (D) x 155° (H) x 120° (V)
• Photosensitivity 0,0 Lux (IR-LED on)
• IR-LEDs (Night Vision) 6
• Mirror function optional
• Protection class IP69K
• Connector: 1 x QSM 6-pin, male, screw type, IP68
• R7 approval for third brake light (S3-02),
  no TÜV approval or registration required
• Rapid Switch:
  - Quick activation of the camera view
  This means that the camera does not have to be permanently switched on, which has a positive effect on the service life and power consumption

Downloads

Data Sheet
