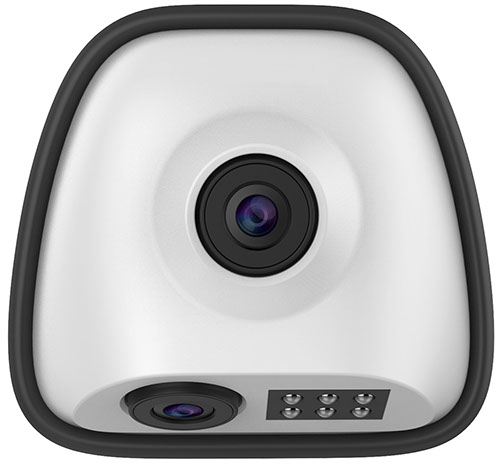

VNA-RCAM-CS240HD

Features

• Night Vision HD Dual Build-on Camera with Near and Wide Vision
• Sensor type 2 x 720P Analog High Definition
• Resolution 1280 (H) × 720 (V) px (1 Megapixel)
• Viewing angle near vision 178° (D) x 137° (H) x 104° (V)
• Viewing angle wide vision 110° (D) x 95° (H) x 50° (V)
• Photosensitivity 0,1 Lux (F1.2 AGC on) – 0,0 Lux (IR-LED on)
• IR-LEDs (Night Vision) 6
• Mirror function optional
• Protection class IP69K
• Connector: 1 x QSM 6-pin, male, screw type, IP68
• Dimensions 120 x 113 x 52 mm
• Rapid Switch:
  - Quick activation of the camera view
  - Quick switching between views
  This means that the camera does not have to be permanently switched on, which has a positive effect on the service life and power consumption
•
• Compatible with ESX Android i30/i40*/i60/i61 Naviceivers and other devices with special AHD input, not compatible with VN1030 Moniceiver, *Adapter set required


• CAUTION: Please note the instructions for operating an HD camera with an ESX Smart Naviceiver here.

Downloads

Data sheet
