VNA-RCAM-CS240

Features

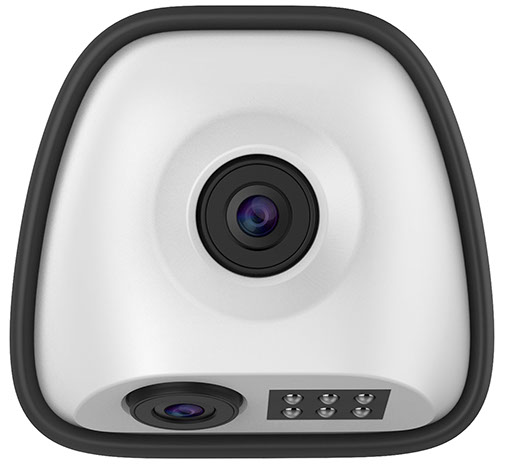

• Night Vision Dual Build-on Camera with Near and Wide Vision
• Sensor type 2 x 1/3” CMOS
• TV-System PAL
• Resolution 968 (H) × 488 (V) px / 700 TV Lines
• Viewing angle near vision 178° (D) x 137° (H) x 104° (V)
• Viewing angle wide vision 110° (D) x 95° (H) x 50° (V)
• Photosensitivity 0,1 Lux (F1.2 AGC on) – 0,0 Lux (IR-LED on)
• IR-LEDs (Night Vision) 6
• Mirror function fixed
• Protection class IP69K
• Connector: 1 x QSM 6-pin, male, screw type, IP68
• Dimensions 120 x 113 x 52 mm
• Rapid Switch:
  - Quick activation of the camera view
  - Quick switching between views
  This means that the camera does not have to be permanently switched on, which has a positive effect on the service life and power consumption

Downloads

Data sheet
